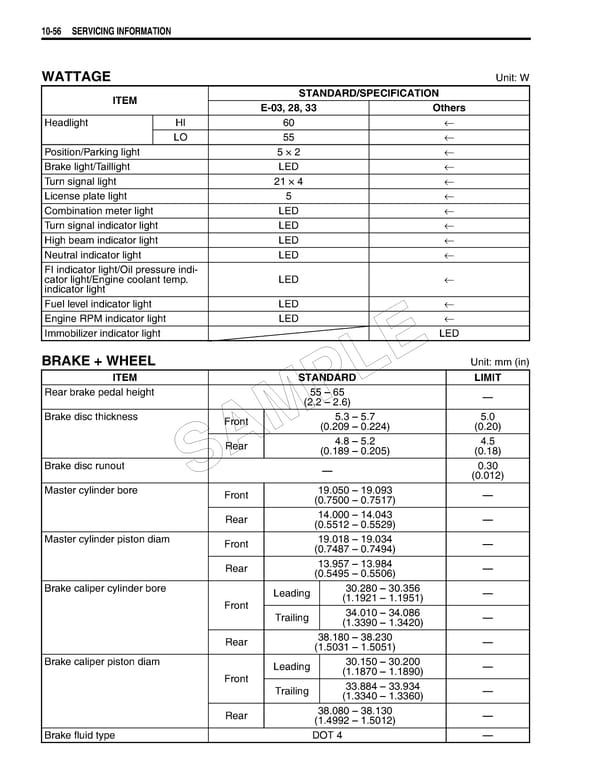

10-56 SERVICING INFORMATION WATTAGE Unit: W ITEM STANDARD/SPECIFICATION E-03, 28, 33 Others Headlight HI 60 ← LO 55 ← Position/Parking light 5 × 2 ← Brake light/Taillight LED ← Turn signal light 21 × 4 ← License plate light 5 ← Combination meter light LED ← Turn signal indicator light LED ← High beam indicator light LED ← Neutral indicator light LED ← FI indicator light/Oil pressure indi- cator light/Engine coolant temp. LED ← indicator light Fuel level indicator light LED ← Engine RPM indicator light LED ← Immobilizer indicator light ELED BRAKE + WHEEL Unit: mm (in) ITEM STANDARDL LIMIT Rear brake pedal height 55 – 65 — P (2.2 – 2.6) Brake disc thickness Front 5.3 – 5.7 5.0 M(0.209 – 0.224) (0.20) Rear 4.8 – 5.2 4.5 A (0.189 – 0.205) (0.18) Brake disc runout S — 0.30 (0.012) Master cylinder bore Front 19.050 – 19.093 — (0.7500 – 0.7517) Rear 14.000 – 14.043 — (0.5512 – 0.5529) Master cylinder piston diam Front 19.018 – 19.034 — (0.7487 – 0.7494) Rear 13.957 – 13.984 — (0.5495 – 0.5506) Brake caliper cylinder bore Leading 30.280 – 30.356 — Front (1.1921 – 1.1951) Trailing 34.010 – 34.086 — (1.3390 – 1.3420) Rear 38.180 – 38.230 — (1.5031 – 1.5051) Brake caliper piston diam Leading 30.150 – 30.200 — Front (1.1870 – 1.1890) Trailing 33.884 – 33.934 — (1.3340 – 1.3360) Rear 38.080 – 38.130 — (1.4992 – 1.5012) Brake fluid type DOT 4 —
