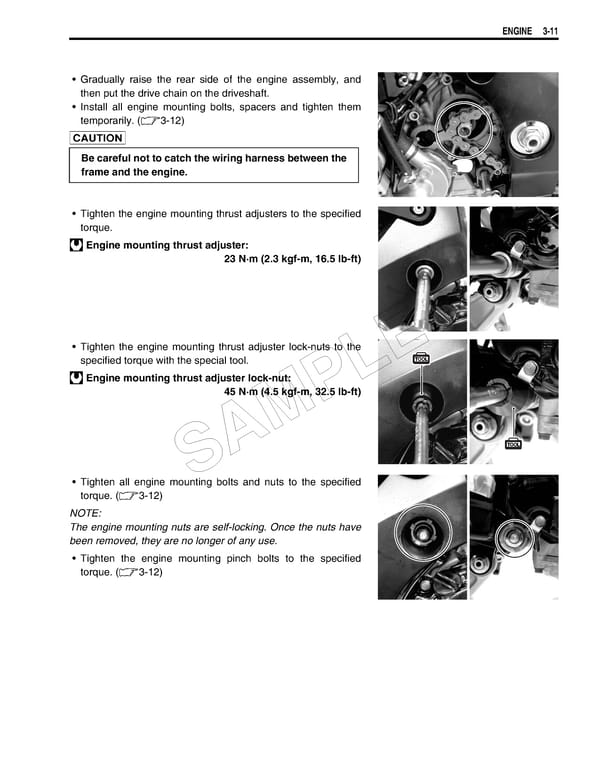

ENGINE 3-11 • Gradually raise the rear side of the engine assembly, and then put the drive chain on the driveshaft. • Install all engine mounting bolts, spacers and tighten them temporarily. (3-12)  Be careful not to catch the wiring harness between the frame and the engine. • Tighten the engine mounting thrust adjusters to the specified torque. Engine mounting thrust adjuster: 23 N·m (2.3 kgf-m, 16.5 lb-ft) • Tighten the engine mounting thrust adjuster lock-nuts to the E specified torque with the special tool. Engine mounting thrust adjuster lock-nut: L 45 N·m (4.5 kgf-m, 32.5 lb-ft) P M A S • Tighten all engine mounting bolts and nuts to the specified torque. (3-12) NOTE: The engine mounting nuts are self-locking. Once the nuts have been removed, they are no longer of any use. • Tighten the engine mounting pinch bolts to the specified torque. (3-12)
