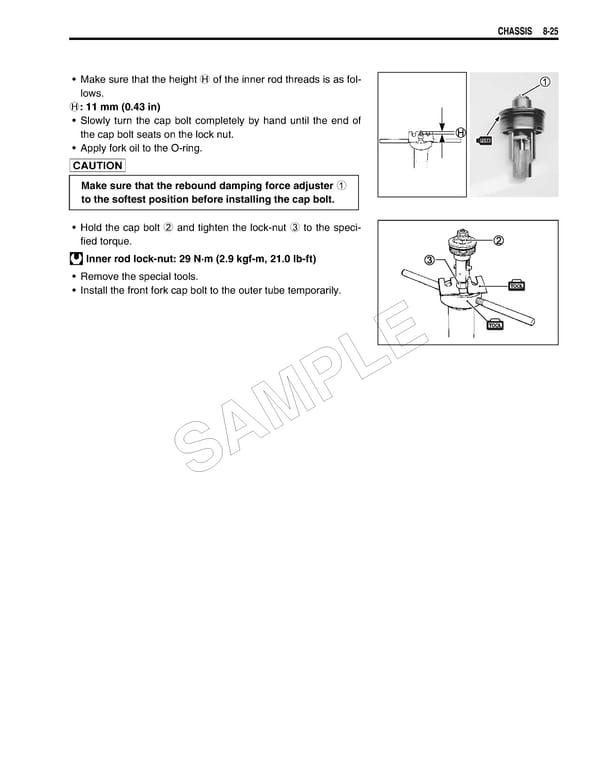

CHASSIS 8-25 • Make sure that the height H of the inner rod threads is as fol- lows. H: 11 mm (0.43 in) • Slowly turn the cap bolt completely by hand until the end of the cap bolt seats on the lock nut. • Apply fork oil to the O-ring.  Make sure that the rebound damping force adjuster 1 to the softest position before installing the cap bolt. • Hold the cap bolt 2 and tighten the lock-nut 3 to the speci- fied torque. Inner rod lock-nut: 29 N·m (2.9 kgf-m, 21.0 lb-ft) • Remove the special tools. • Install the front fork cap bolt to the outer tube temporarily. E L P M A S
