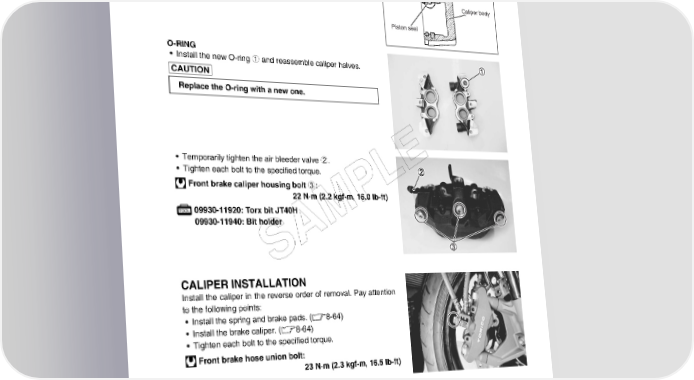

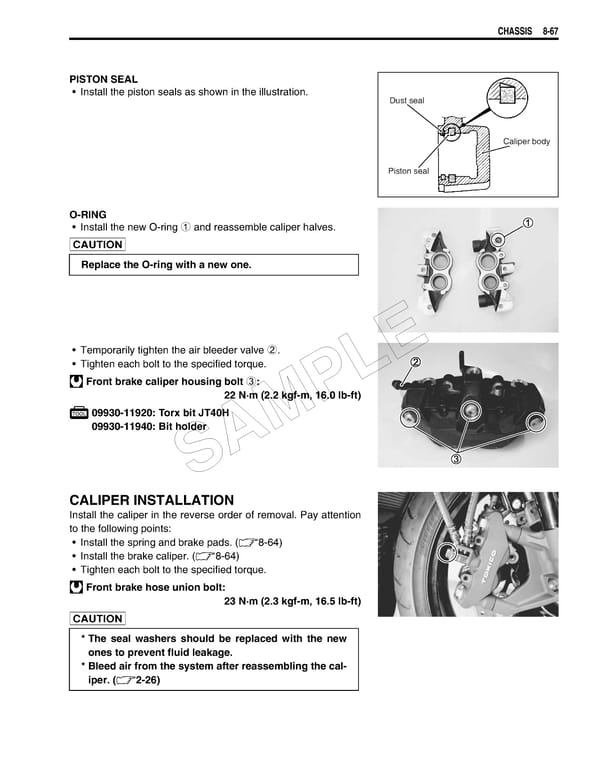

CHASSIS 8-67 PISTON SEAL • Install the piston seals as shown in the illustration. Dust seal Caliper body Piston seal O-RING • Install the new O-ring 1 and reassemble caliper halves.  Replace the O-ring with a new one. • Temporarily tighten the air bleeder valve 2. E • Tighten each bolt to the specified torque. L Front brake caliper housing bolt 3: 22 N·m (2.2 kgf-m, 16.0 lb-ft) 09930-11920: Torx bit JT40H P 09930-11940: Bit holder M A S CALIPER INSTALLATION Install the caliper in the reverse order of removal. Pay attention to the following points: • Install the spring and brake pads. (8-64) • Install the brake caliper. (8-64) • Tighten each bolt to the specified torque. Front brake hose union bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)  * The seal washers should be replaced with the new ones to prevent fluid leakage. * Bleed air from the system after reassembling the cal- iper. (2-26)
