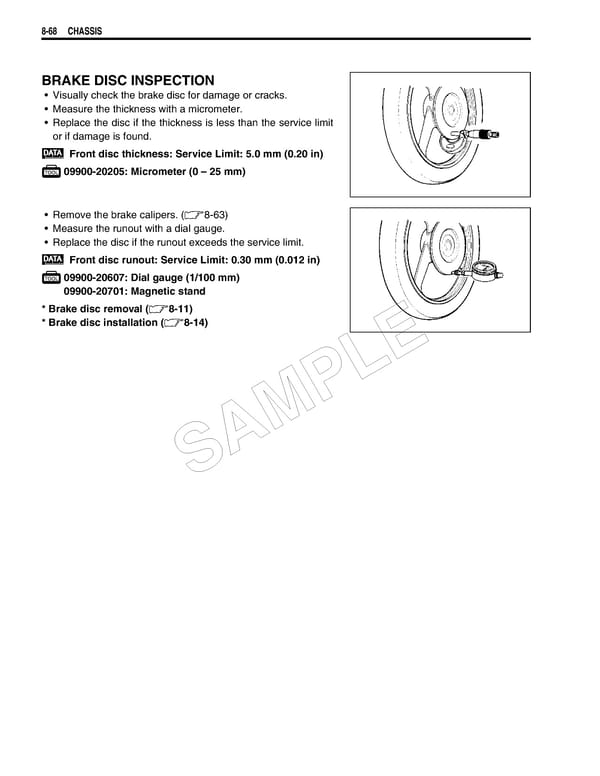

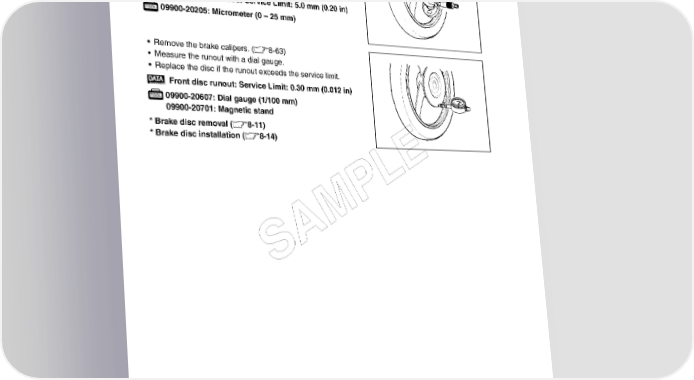

8-68 CHASSIS BRAKE DISC INSPECTION • Visually check the brake disc for damage or cracks. • Measure the thickness with a micrometer. • Replace the disc if the thickness is less than the service limit or if damage is found. Front disc thickness: Service Limit: 5.0 mm (0.20 in) 09900-20205: Micrometer (0 – 25 mm) • Remove the brake calipers. (8-63) • Measure the runout with a dial gauge. • Replace the disc if the runout exceeds the service limit. Front disc runout: Service Limit: 0.30 mm (0.012 in) 09900-20607: Dial gauge (1/100 mm) 09900-20701: Magnetic stand * Brake disc removal (8-11) * Brake disc installation (8-14) E L P M A S
