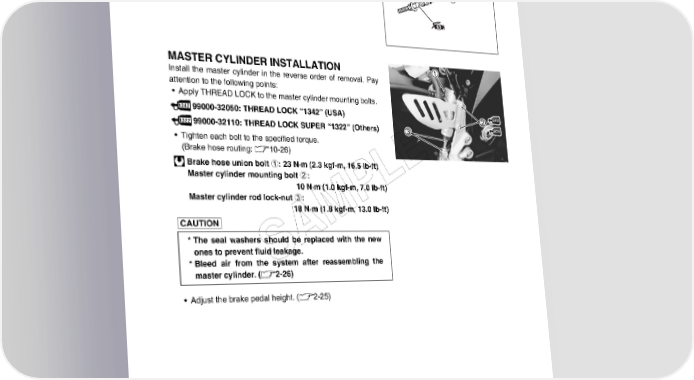

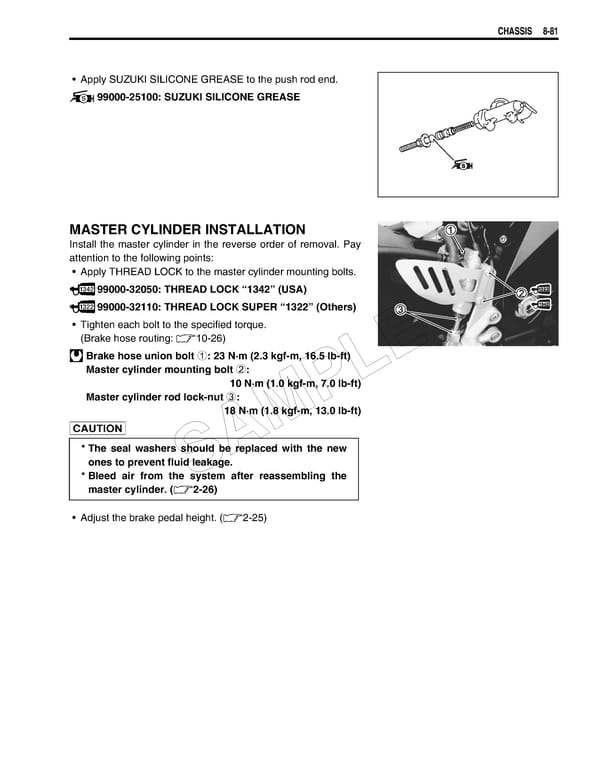

CHASSIS 8-81 • Apply SUZUKI SILICONE GREASE to the push rod end. 99000-25100: SUZUKI SILICONE GREASE MASTER CYLINDER INSTALLATION Install the master cylinder in the reverse order of removal. Pay attention to the following points: • Apply THREAD LOCK to the master cylinder mounting bolts. 99000-32050: THREAD LOCK “1342” (USA) 99000-32110: THREAD LOCK SUPER “1322” (Others) • Tighten each bolt to the specified torque. (Brake hose routing: 10-26) Brake hose union bolt 1: 23 N·m (2.3 kgf-m, 16.5 lb-ft) E Master cylinder mounting bolt 2: L 10 N·m (1.0 kgf-m, 7.0 lb-ft) Master cylinder rod lock-nut 3: P 18 N·m (1.8 kgf-m, 13.0 lb-ft)  M * The seal washers should be replaced with the new A ones to prevent fluid leakage. S * Bleed air from the system after reassembling the master cylinder. (2-26) • Adjust the brake pedal height. (2-25)
