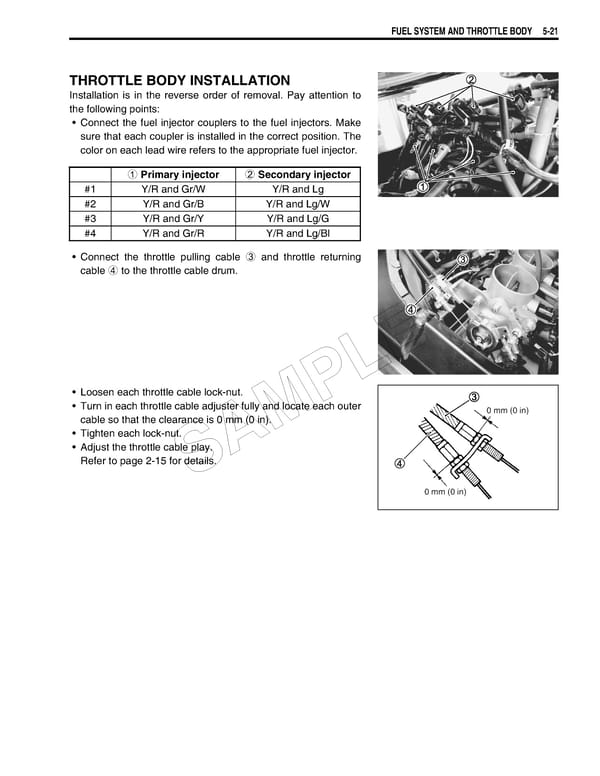

FUEL SYSTEM AND THROTTLE BODY 5-21 THROTTLE BODY INSTALLATION Installation is in the reverse order of removal. Pay attention to the following points: • Connect the fuel injector couplers to the fuel injectors. Make sure that each coupler is installed in the correct position. The color on each lead wire refers to the appropriate fuel injector. 1 Primary injector 2 Secondary injector #1 Y/R and Gr/W Y/R and Lg #2 Y/R and Gr/B Y/R and Lg/W #3 Y/R and Gr/Y Y/R and Lg/G #4 Y/R and Gr/R Y/R and Lg/Bl • Connect the throttle pulling cable 3 and throttle returning cable 4 to the throttle cable drum. E L • Loosen each throttle cable lock-nut. P • Turn in each throttle cable adjuster fully and locate each outer 0 mm (0 in) cable so that the clearance is 0 mm (0 in). • Tighten each lock-nut. M • Adjust the throttle cable play. A Refer to page 2-15 for details. S 0 mm (0 in)
