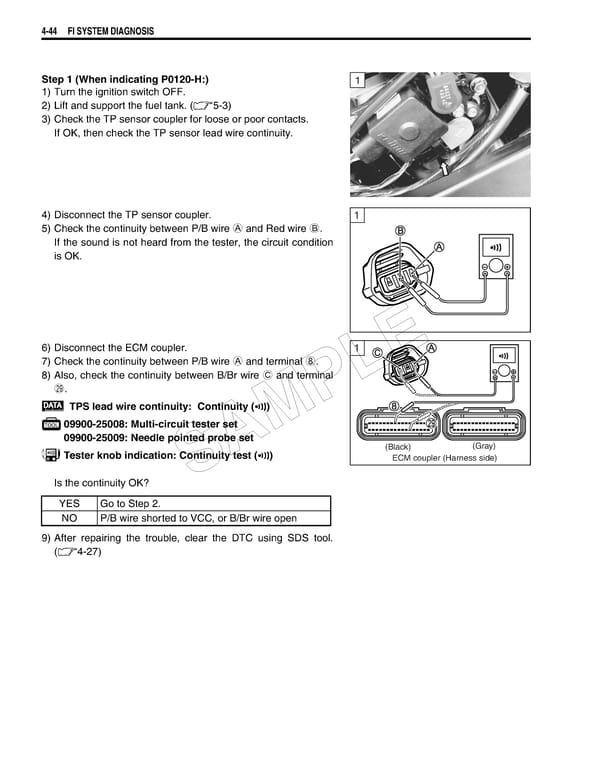

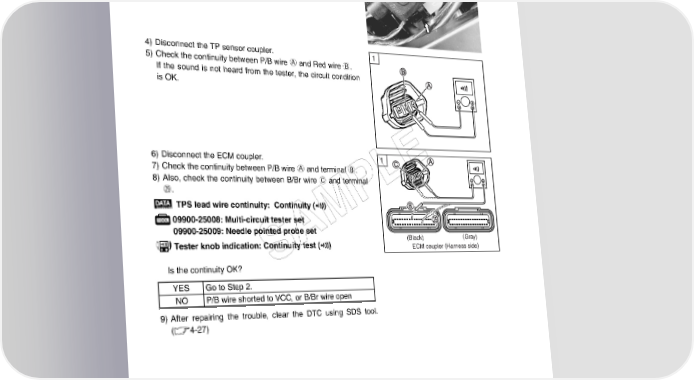

4-44 FI SYSTEM DIAGNOSIS Step 1 (When indicating P0120-H:) 1 1) Turn the ignition switch OFF. 2) Lift and support the fuel tank. (5-3) 3) Check the TP sensor coupler for loose or poor contacts. If OK, then check the TP sensor lead wire continuity. 4) Disconnect the TP sensor coupler. 1 5) Check the continuity between P/B wire A and Red wire B. If the sound is not heard from the tester, the circuit condition is OK. 6) Disconnect the ECM coupler. 1 7) Check the continuity between P/B wire A and terminal 8. E 8) Also, check the continuity between B/Br wire C and terminal L S. P TPS lead wire continuity: Continuity () 09900-25008: Multi-circuit tester set M 09900-25009: Needle pointed probe set A (Black) (Gray) Tester knob indication: Continuity test () ECM coupler (Harness side) Is the continuity OK? S YES Go to Step 2. NO P/B wire shorted to VCC, or B/Br wire open 9) After repairing the trouble, clear the DTC using SDS tool. (4-27)
