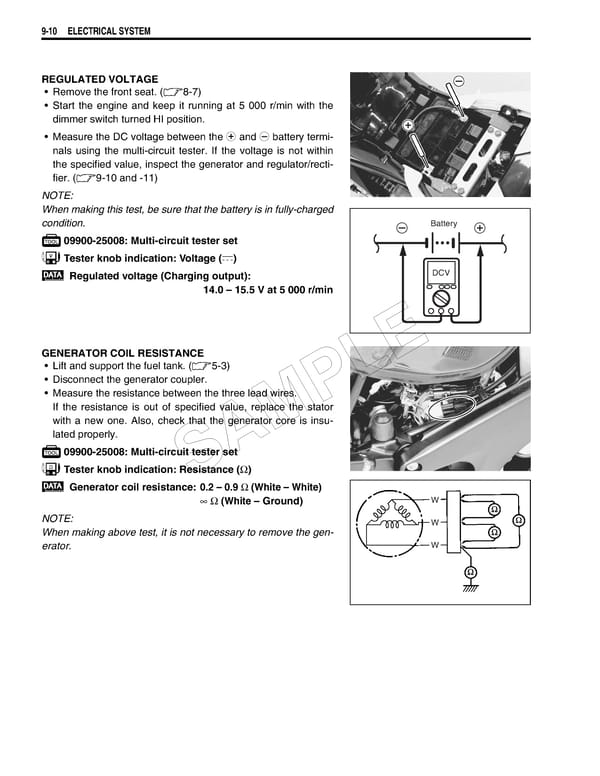

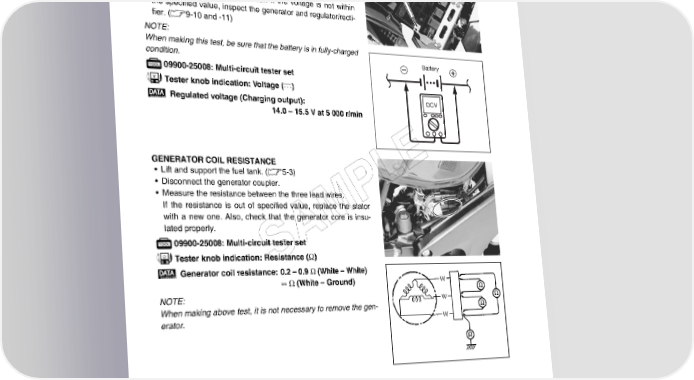

9-10 ELECTRICAL SYSTEM REGULATED VOLTAGE • Remove the front seat. (8-7) • Start the engine and keep it running at 5 000 r/min with the dimmer switch turned HI position. • Measure the DC voltage between the + and - battery termi- nals using the multi-circuit tester. If the voltage is not within the specified value, inspect the generator and regulator/recti- fier. (9-10 and -11) NOTE: When making this test, be sure that the battery is in fully-charged condition. Battery 09900-25008: Multi-circuit tester set Tester knob indication: Voltage () Regulated voltage (Charging output): DCV 14.0 – 15.5 V at 5 000 r/min GENERATOR COIL RESISTANCE E • Lift and support the fuel tank. (5-3) L • Disconnect the generator coupler. • Measure the resistance between the three lead wires. P If the resistance is out of specified value, replace the stator with a new one. Also, check that the generator core is insu- lated properly. M 09900-25008: Multi-circuit tester set A Tester knob indication: Resistance (Ω) S Generator coil resistance: 0.2 – 0.9 Ω (White – White) ∞ Ω (White – Ground) W NOTE: W When making above test, it is not necessary to remove the gen- erator. W
