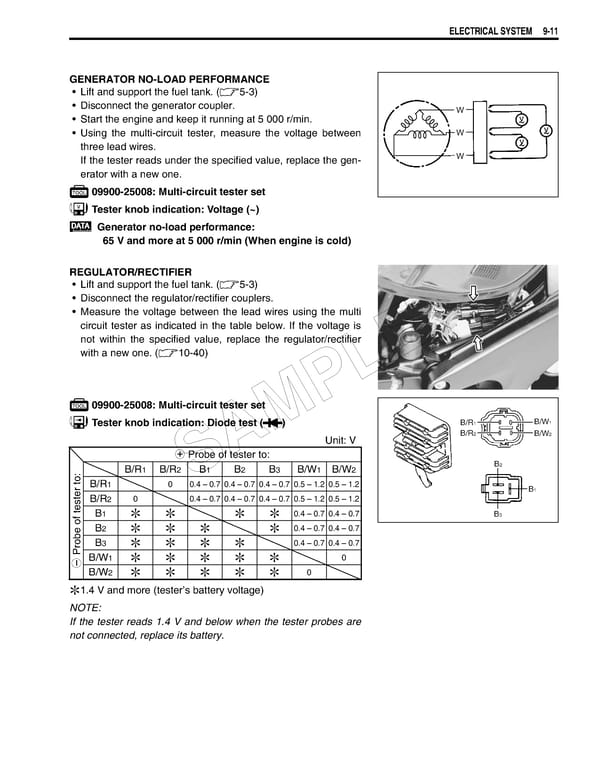

ELECTRICAL SYSTEM 9-11 GENERATOR NO-LOAD PERFORMANCE • Lift and support the fuel tank. (5-3) • Disconnect the generator coupler. W • Start the engine and keep it running at 5 000 r/min. • Using the multi-circuit tester, measure the voltage between W three lead wires. If the tester reads under the specified value, replace the gen- W erator with a new one. 09900-25008: Multi-circuit tester set Tester knob indication: Voltage (~) Generator no-load performance: 65 V and more at 5 000 r/min (When engine is cold) REGULATOR/RECTIFIER • Lift and support the fuel tank. (5-3) • Disconnect the regulator/rectifier couplers. • Measure the voltage between the lead wires using the multi circuit tester as indicated in the table below. If the voltage is not within the specified value, replace the regulator/rectifier with a new one. (10-40) E PL 09900-25008: Multi-circuit tester set Tester knob indication: Diode test () B/R1 B/W1 M B/R2 B/W2 A Unit: V + Probe of tester to: B/R1 B/R2 B1 B2 B3 B/W1 B/W2 B2 S B/R1 0 0.4 – 0.7 0.4 – 0.7 0.4 – 0.7 0.5 – 1.2 0.5 – 1.2 B1 B/R2 0 0.4 – 0.7 0.4 – 0.7 0.4 – 0.7 0.5 – 1.2 0.5 – 1.2 0.4 – 0.7 0.4 – 0.7 B3 B1   0.4 – 0.7 0.4 – 0.7 B2   B3  0.4 – 0.70.4 – 0.7 Probe of tester to:B/W1 0 - B/W2 0 1.4 V and more (tester’s battery voltage) NOTE: If the tester reads 1.4 V and below when the tester probes are not connected, replace its battery.
