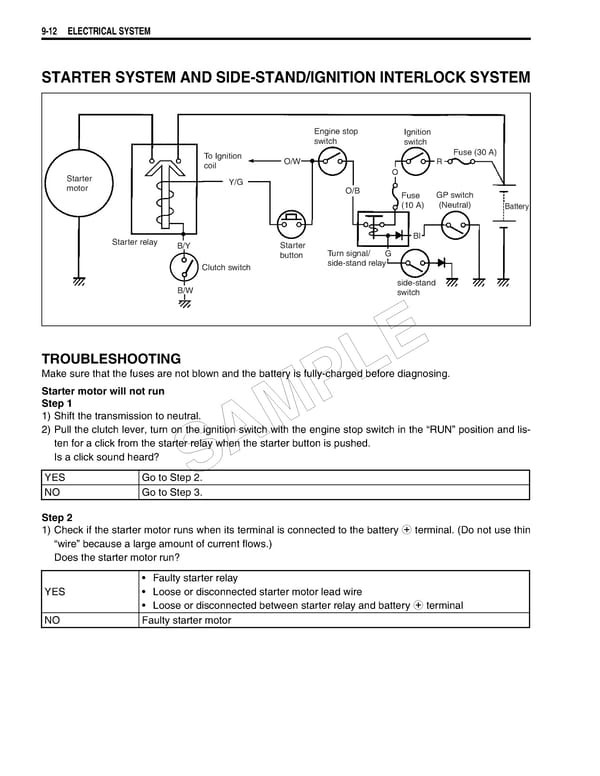

9-12 ELECTRICAL SYSTEM STARTER SYSTEM AND SIDE-STAND/IGNITION INTERLOCK SYSTEM Engine stop Ignition switch switch To Ignition Fuse (30 A) coil O/W R Starter Y/G motor O/B Fuse GP switch (10 A) (Neutral) Battery Starter relay Bl B/Y Starter button Turn signal/ G Clutch switch side-stand relay side-stand B/W switch TROUBLESHOOTING E Make sure that the fuses are not blown and the battery is fully-charged before diagnosing. L Starter motor will not run P Step 1 1) Shift the transmission to neutral. M 2) Pull the clutch lever, turn on the ignition switch with the engine stop switch in the “RUN” position and lis- ten for a click from the starter relay when the starter button is pushed. Is a click sound heard? SA YES Go to Step 2. NO Go to Step 3. Step 2 1) Check if the starter motor runs when its terminal is connected to the battery + terminal. (Do not use thin “wire” because a large amount of current flows.) Does the starter motor run? • Faulty starter relay YES • Loose or disconnected starter motor lead wire • Loose or disconnected between starter relay and battery + terminal NO Faulty starter motor
