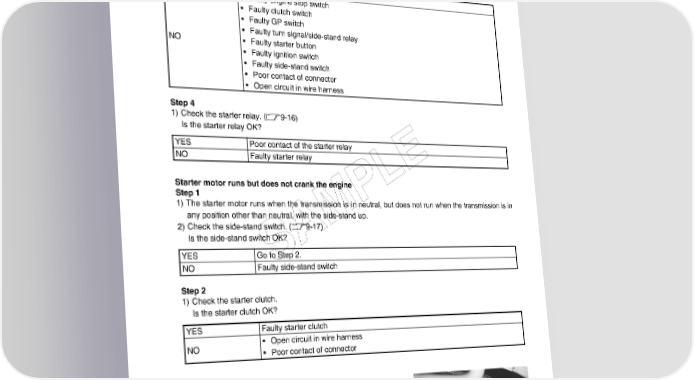

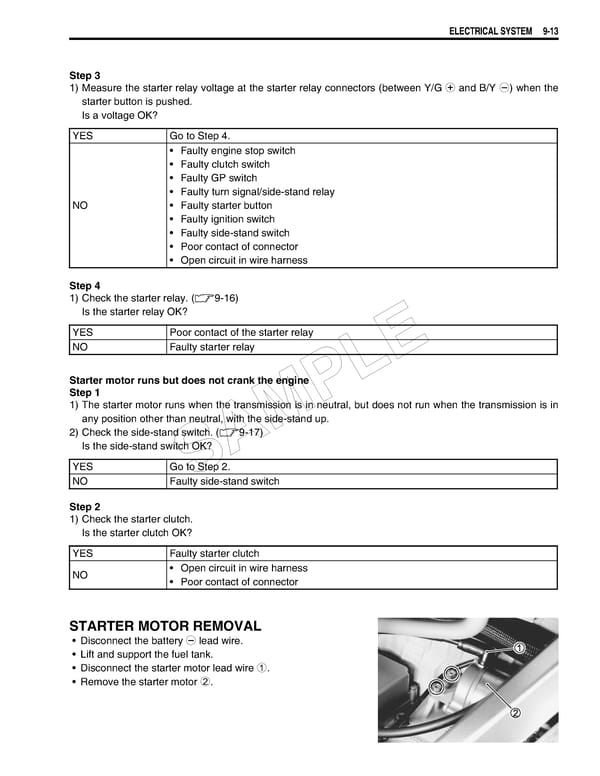

ELECTRICAL SYSTEM 9-13 Step 3 1) Measure the starter relay voltage at the starter relay connectors (between Y/G + and B/Y -) when the starter button is pushed. Is a voltage OK? YES Go to Step 4. • Faulty engine stop switch • Faulty clutch switch • Faulty GP switch • Faulty turn signal/side-stand relay NO • Faulty starter button • Faulty ignition switch • Faulty side-stand switch • Poor contact of connector • Open circuit in wire harness Step 4 1) Check the starter relay. (9-16) Is the starter relay OK? YES Poor contact of the starter relay NO Faulty starter relay E Starter motor runs but does not crank the engine L Step 1 P 1) The starter motor runs when the transmission is in neutral, but does not run when the transmission is in any position other than neutral, with the side-stand up. 2) Check the side-stand switch. (9-17) M Is the side-stand switch OK? A YES Go to Step 2. S NO Faulty side-stand switch Step 2 1) Check the starter clutch. Is the starter clutch OK? YES Faulty starter clutch NO • Open circuit in wire harness • Poor contact of connector STARTER MOTOR REMOVAL • Disconnect the battery - lead wire. • Lift and support the fuel tank. • Disconnect the starter motor lead wire 1. • Remove the starter motor 2.
