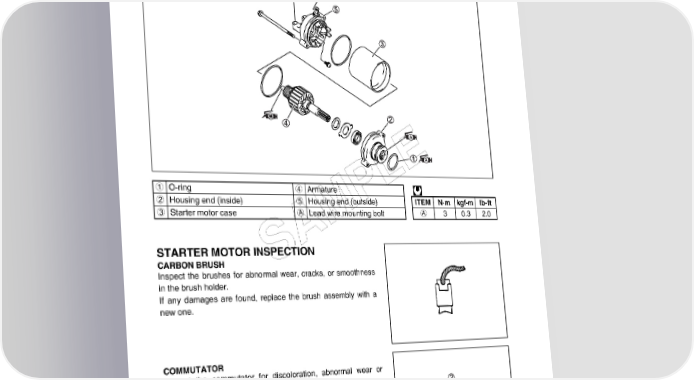

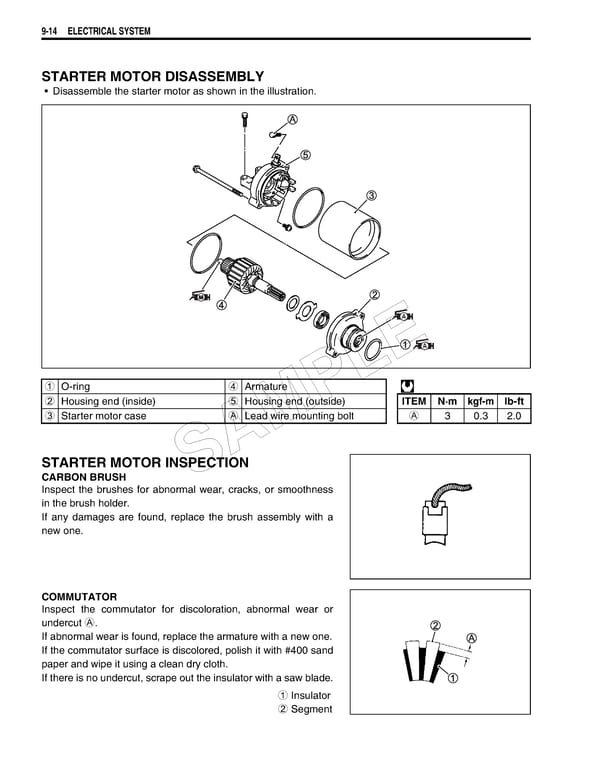

9-14 ELECTRICAL SYSTEM STARTER MOTOR DISASSEMBLY • Disassemble the starter motor as shown in the illustration. E L 1 O-ring 4 Armature  P 2 Housing end (inside) 5 Housing end (outside) ITEM N·m kgf-m lb-ft 3 Starter motor case A Lead wire mounting bolt A 30.32.0 M A STARTER MOTOR INSPECTION CARBON BRUSH S Inspect the brushes for abnormal wear, cracks, or smoothness in the brush holder. If any damages are found, replace the brush assembly with a new one. COMMUTATOR Inspect the commutator for discoloration, abnormal wear or undercut A. If abnormal wear is found, replace the armature with a new one. If the commutator surface is discolored, polish it with #400 sand paper and wipe it using a clean dry cloth. If there is no undercut, scrape out the insulator with a saw blade. 1 Insulator 2 Segment
