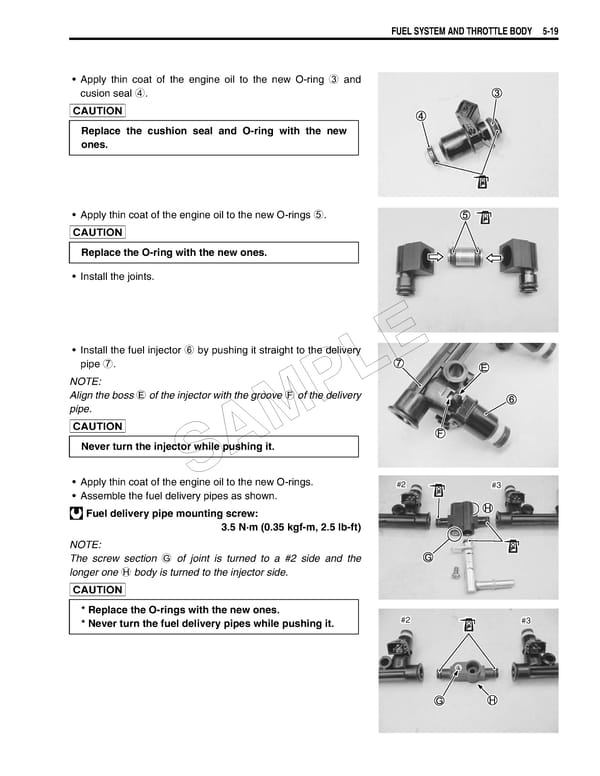

FUEL SYSTEM AND THROTTLE BODY 5-19 • Apply thin coat of the engine oil to the new O-ring 3 and cusion seal 4.  Replace the cushion seal and O-ring with the new ones. • Apply thin coat of the engine oil to the new O-rings 5.  Replace the O-ring with the new ones. • Install the joints. • Install the fuel injector 6 by pushing it straight to the delivery E pipe 7. L NOTE: Align the boss E of the injector with the groove F of the delivery pipe. P  M Never turn the injector while pushing it. A S • Apply thin coat of the engine oil to the new O-rings. #2#2#2 #2#2#3 • Assemble the fuel delivery pipes as shown. Fuel delivery pipe mounting screw: 3.5 N·m (0.35 kgf-m, 2.5 lb-ft) NOTE: The screw section G of joint is turned to a #2 side and the longer one H body is turned to the injector side.  * Replace the O-rings with the new ones. * Never turn the fuel delivery pipes while pushing it. #2#2#2 #2#3#2
