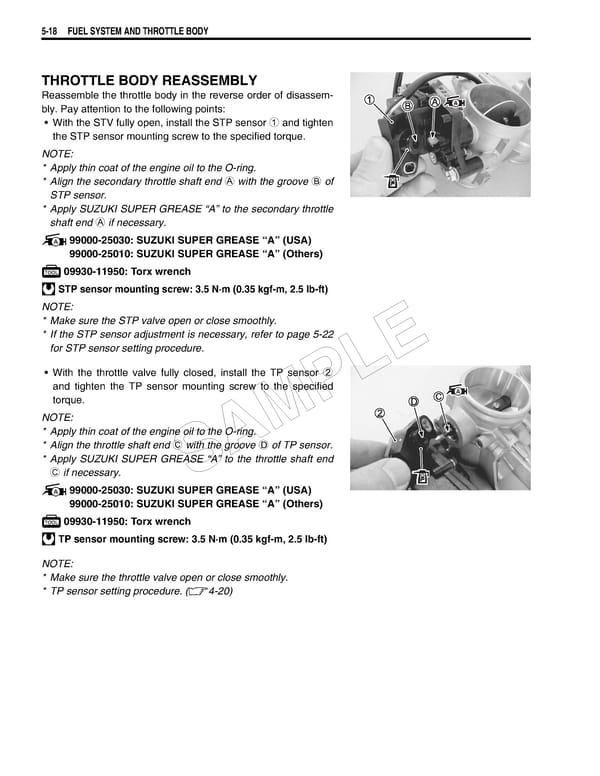

5-18 FUEL SYSTEM AND THROTTLE BODY THROTTLE BODY REASSEMBLY Reassemble the throttle body in the reverse order of disassem- bly. Pay attention to the following points: • With the STV fully open, install the STP sensor 1 and tighten the STP sensor mounting screw to the specified torque. NOTE: * Apply thin coat of the engine oil to the O-ring. * Align the secondary throttle shaft end A with the groove B of STP sensor. * Apply SUZUKI SUPER GREASE “A” to the secondary throttle shaft end A if necessary. 99000-25030: SUZUKI SUPER GREASE “A” (USA) 99000-25010: SUZUKI SUPER GREASE “A” (Others) 09930-11950: Torx wrench STP sensor mounting screw: 3.5 N·m (0.35 kgf-m, 2.5 lb-ft) NOTE: * Make sure the STP valve open or close smoothly. * If the STP sensor adjustment is necessary, refer to page 5-22 for STP sensor setting procedure. E • With the throttle valve fully closed, install the TP sensor 2 L and tighten the TP sensor mounting screw to the specified torque. P NOTE: M * Apply thin coat of the engine oil to the O-ring. * Align the throttle shaft end C with the groove D of TP sensor. A * Apply SUZUKI SUPER GREASE “A” to the throttle shaft end C if necessary. S 99000-25030: SUZUKI SUPER GREASE “A” (USA) 99000-25010: SUZUKI SUPER GREASE “A” (Others) 09930-11950: Torx wrench TP sensor mounting screw: 3.5 N·m (0.35 kgf-m, 2.5 lb-ft) NOTE: * Make sure the throttle valve open or close smoothly. * TP sensor setting procedure. (4-20)
