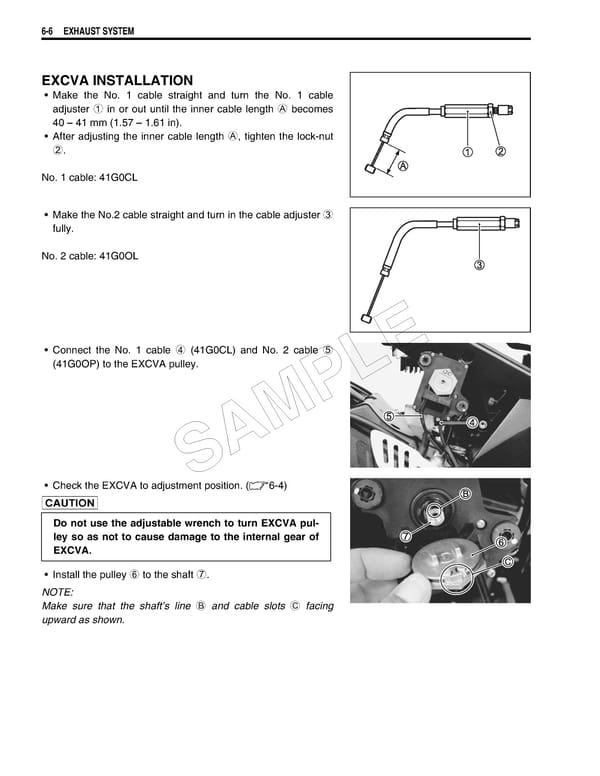

6-6 EXHAUST SYSTEM EXCVA INSTALLATION • Make the No. 1 cable straight and turn the No. 1 cable adjuster 1 in or out until the inner cable length A becomes 40 – 41 mm (1.57 – 1.61 in). • After adjusting the inner cable length A, tighten the lock-nut 2. No. 1 cable: 41G0CL • Make the No.2 cable straight and turn in the cable adjuster 3 fully. No. 2 cable: 41G0OL • Connect the No. 1 cable 4 (41G0CL) and No. 2 cable 5 E (41G0OP) to the EXCVA pulley. L P M A S • Check the EXCVA to adjustment position. (6-4)  Do not use the adjustable wrench to turn EXCVA pul- ley so as not to cause damage to the internal gear of EXCVA. • Install the pulley 6 to the shaft 7. NOTE: Make sure that the shaft’s line B and cable slots C facing upward as shown.
