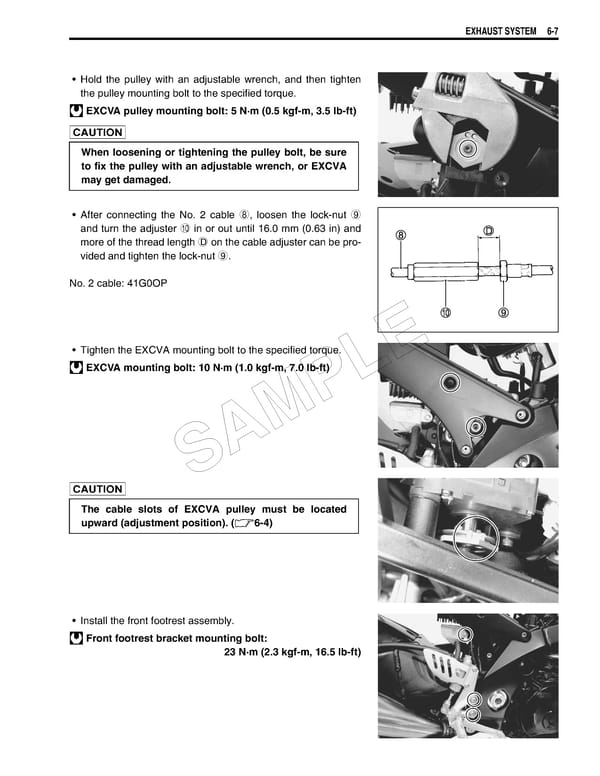

EXHAUST SYSTEM 6-7 • Hold the pulley with an adjustable wrench, and then tighten the pulley mounting bolt to the specified torque. EXCVA pulley mounting bolt: 5 N·m (0.5 kgf-m, 3.5 lb-ft)  When loosening or tightening the pulley bolt, be sure to fix the pulley with an adjustable wrench, or EXCVA may get damaged. • After connecting the No. 2 cable 8, loosen the lock-nut 9 and turn the adjuster 0 in or out until 16.0 mm (0.63 in) and more of the thread length D on the cable adjuster can be pro- vided and tighten the lock-nut 9. No. 2 cable: 41G0OP • Tighten the EXCVA mounting bolt to the specified torque. E EXCVA mounting bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft) L P M A S  The cable slots of EXCVA pulley must be located upward (adjustment position). (6-4) • Install the front footrest assembly. Front footrest bracket mounting bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
