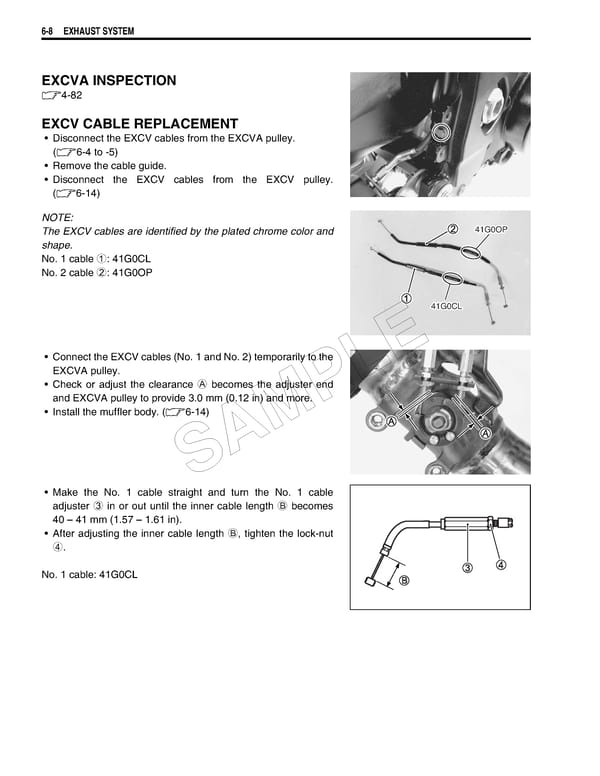

6-8 EXHAUST SYSTEM EXCVA INSPECTION 4-82 EXCV CABLE REPLACEMENT • Disconnect the EXCV cables from the EXCVA pulley. (6-4 to -5) • Remove the cable guide. • Disconnect the EXCV cables from the EXCV pulley. (6-14) NOTE: The EXCV cables are identified by the plated chrome color and 41G0OP shape. No. 1 cable 1: 41G0CL No. 2 cable 2: 41G0OP 41G0CL • Connect the EXCV cables (No. 1 and No. 2) temporarily to the E EXCVA pulley. L • Check or adjust the clearance A becomes the adjuster end and EXCVA pulley to provide 3.0 mm (0.12 in) and more. P • Install the muffler body. (6-14) AM S • Make the No. 1 cable straight and turn the No. 1 cable adjuster 3 in or out until the inner cable length B becomes 40 – 41 mm (1.57 – 1.61 in). • After adjusting the inner cable length B, tighten the lock-nut 4. No. 1 cable: 41G0CL
