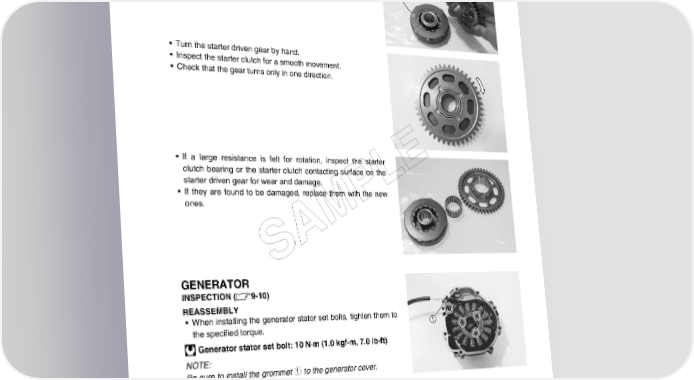

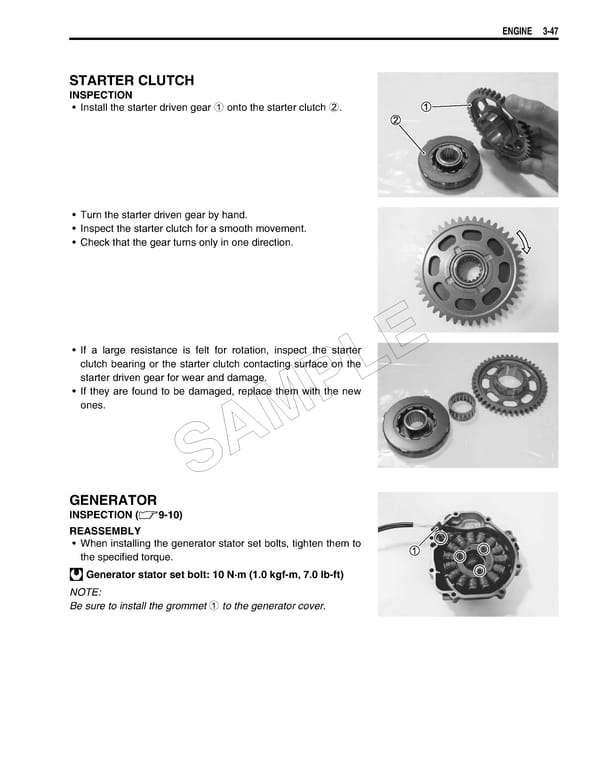

ENGINE 3-47 STARTER CLUTCH INSPECTION • Install the starter driven gear 1 onto the starter clutch 2. • Turn the starter driven gear by hand. • Inspect the starter clutch for a smooth movement. • Check that the gear turns only in one direction. • If a large resistance is felt for rotation, inspect the starter E clutch bearing or the starter clutch contacting surface on the starter driven gear for wear and damage. L • If they are found to be damaged, replace them with the new ones. P M A S GENERATOR INSPECTION (9-10) REASSEMBLY • When installing the generator stator set bolts, tighten them to the specified torque. Generator stator set bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft) NOTE: Be sure to install the grommet 1 to the generator cover.
