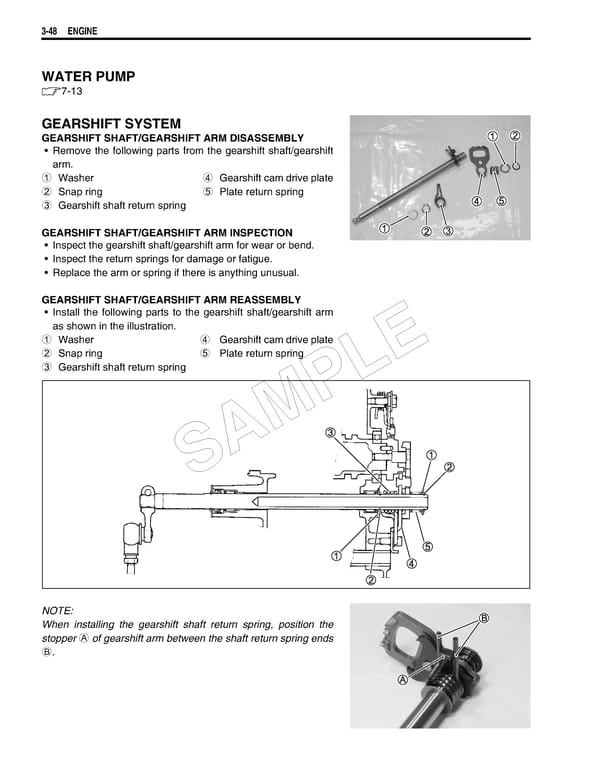

3-48 ENGINE WATER PUMP 7-13 GEARSHIFT SYSTEM GEARSHIFT SHAFT/GEARSHIFT ARM DISASSEMBLY • Remove the following parts from the gearshift shaft/gearshift arm. 1 Washer 4 Gearshift cam drive plate 2 Snap ring 5 Plate return spring 3 Gearshift shaft return spring GEARSHIFT SHAFT/GEARSHIFT ARM INSPECTION • Inspect the gearshift shaft/gearshift arm for wear or bend. • Inspect the return springs for damage or fatigue. • Replace the arm or spring if there is anything unusual. GEARSHIFT SHAFT/GEARSHIFT ARM REASSEMBLY • Install the following parts to the gearshift shaft/gearshift arm as shown in the illustration. 1 Washer 4 Gearshift cam drive plate 2 Snap ring 5 Plate return spring E 3 Gearshift shaft return spring PL SAM NOTE: When installing the gearshift shaft return spring, position the stopper A of gearshift arm between the shaft return spring ends B.
