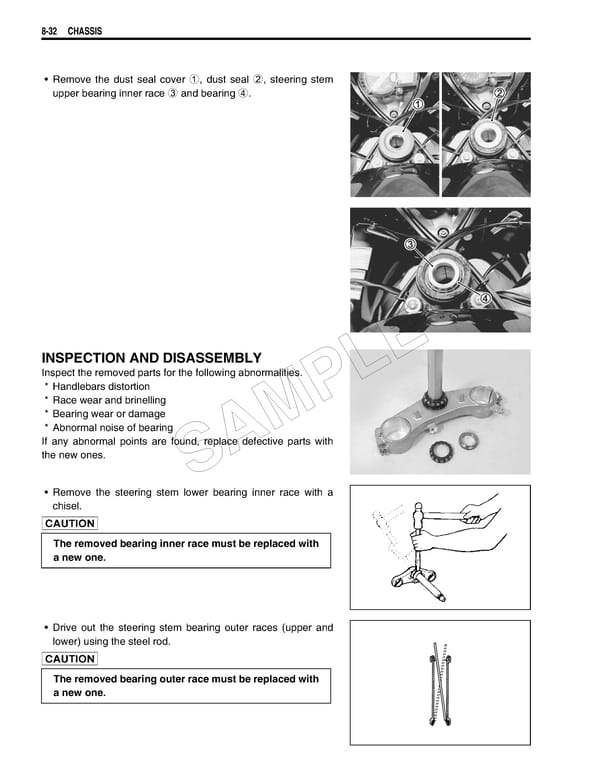

8-32 CHASSIS • Remove the dust seal cover 1, dust seal 2, steering stem upper bearing inner race 3 and bearing 4. INSPECTION AND DISASSEMBLY E Inspect the removed parts for the following abnormalities. L * Handlebars distortion * Race wear and brinelling P * Bearing wear or damage * Abnormal noise of bearing M If any abnormal points are found, replace defective parts with the new ones. A S • Remove the steering stem lower bearing inner race with a chisel.  The removed bearing inner race must be replaced with a new one. • Drive out the steering stem bearing outer races (upper and lower) using the steel rod.  The removed bearing outer race must be replaced with a new one.
