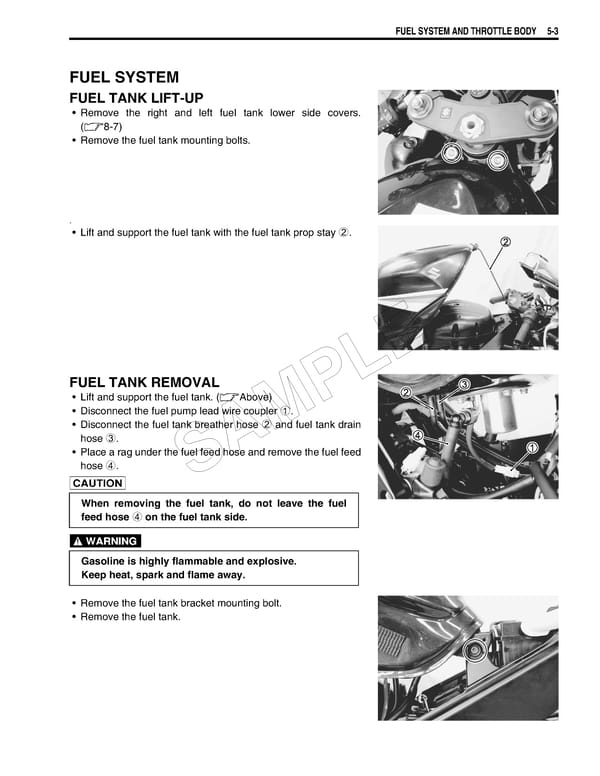

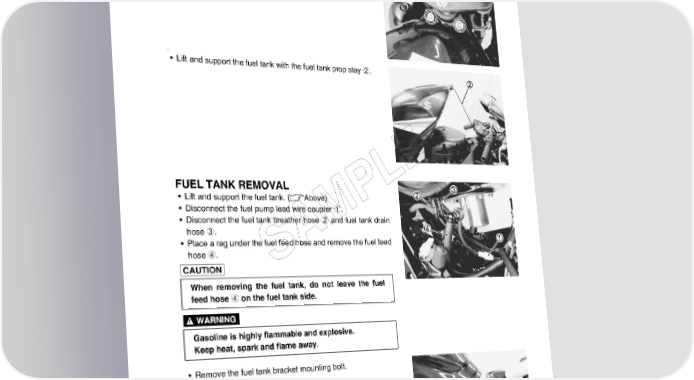

FUEL SYSTEM AND THROTTLE BODY 5-3 FUEL SYSTEM FUEL TANK LIFT-UP • Remove the right and left fuel tank lower side covers. (8-7) • Remove the fuel tank mounting bolts. . • Lift and support the fuel tank with the fuel tank prop stay 2. E FUEL TANK REMOVAL L • Lift and support the fuel tank. (Above) P • Disconnect the fuel pump lead wire coupler 1. • Disconnect the fuel tank breather hose 2 and fuel tank drain hose 3. M • Place a rag under the fuel feed hose and remove the fuel feed A hose 4. S  When removing the fuel tank, do not leave the fuel feed hose 4 on the fuel tank side.  Gasoline is highly flammable and explosive. Keep heat, spark and flame away. • Remove the fuel tank bracket mounting bolt. • Remove the fuel tank.
