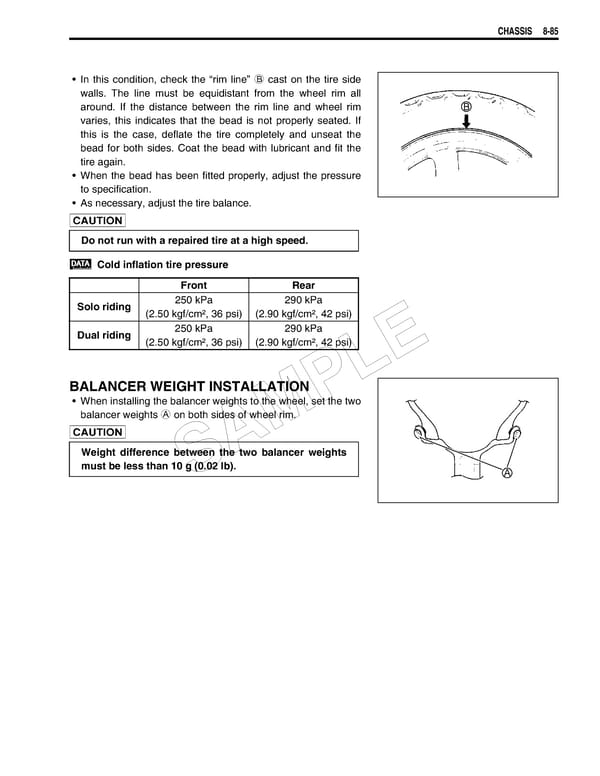

CHASSIS 8-85 • In this condition, check the “rim line” B cast on the tire side walls. The line must be equidistant from the wheel rim all around. If the distance between the rim line and wheel rim varies, this indicates that the bead is not properly seated. If this is the case, deflate the tire completely and unseat the bead for both sides. Coat the bead with lubricant and fit the tire again. • When the bead has been fitted properly, adjust the pressure to specification. • As necessary, adjust the tire balance.  Do not run with a repaired tire at a high speed. Cold inflation tire pressure Front Rear Solo riding 250 kPa 290 kPa (2.50 kgf/cm², 36 psi) (2.90 kgf/cm², 42 psi) Dual riding 250 kPa 290 kPa (2.50 kgf/cm², 36 psi) (2.90 kgf/cm², 42 psi) E BALANCER WEIGHT INSTALLATION L P • When installing the balancer weights to the wheel, set the two balancer weights A on both sides of wheel rim.  M Weight difference between the two balancer weights A must be less than 10 g (0.02 lb). S
