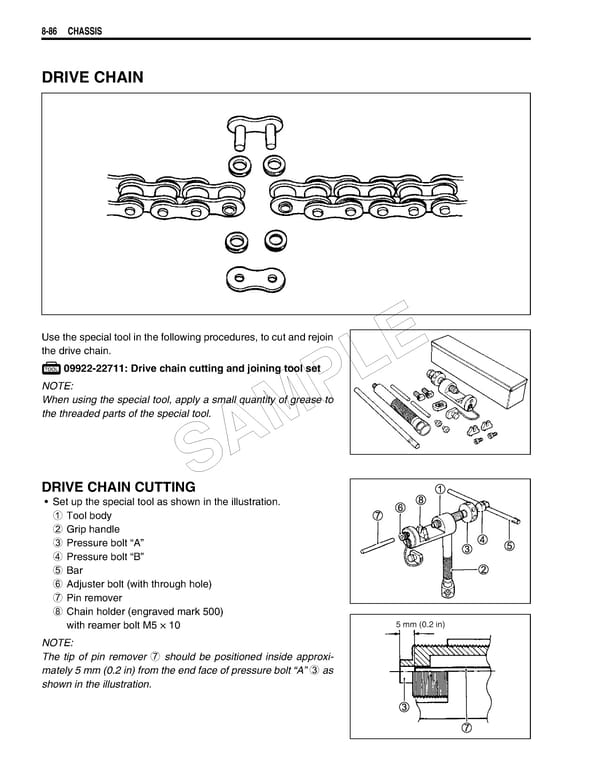

8-86 CHASSIS DRIVE CHAIN Use the special tool in the following procedures, to cut and rejoin the drive chain. E 09922-22711: Drive chain cutting and joining tool set L NOTE: When using the special tool, apply a small quantity of grease to P the threaded parts of the special tool. AM S DRIVE CHAIN CUTTING • Set up the special tool as shown in the illustration. 1Tool body 2Grip handle 3Pressure bolt “A” 4Pressure bolt “B” 5Bar 6Adjuster bolt (with through hole) 7Pin remover 8Chain holder (engraved mark 500) with reamer bolt M5 × 10 5 mm (0.2 in) NOTE: The tip of pin remover 7 should be positioned inside approxi- mately 5 mm (0.2 in) from the end face of pressure bolt “A” 3 as shown in the illustration.
