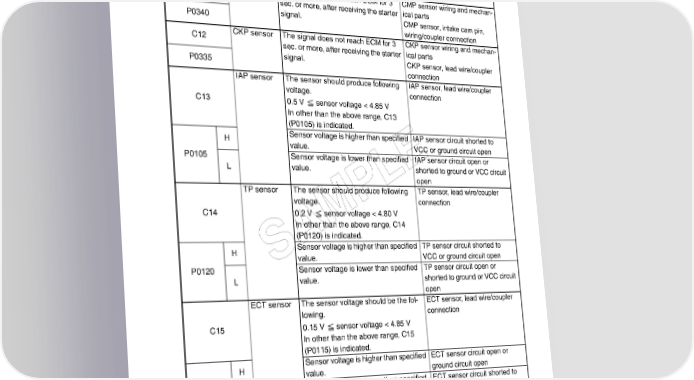

FI SYSTEM DIAGNOSIS 4-29 MALFUNCTION CODE AND DEFECTIVE CONDITION DTC No. DETECTED DETECTED FAILURE CONDITION CHECK FOR ITEM C00 NO FAULT ––––––––––– ––––––––––– C11 CMP sensor The signal does not reach ECM for 3 CMP sensor wiring and mechan- sec. or more, after receiving the starter ical parts P0340 signal. CMP sensor, intake cam pin, wiring/coupler connection C12 CKP sensor The signal does not reach ECM for 3 CKP sensor wiring and mechan- sec. or more, after receiving the starter ical parts P0335 signal. CKP sensor, lead wire/coupler connection IAP sensor The sensor should produce following IAP sensor, lead wire/coupler voltage. connection C13 0.5 V sensor voltage < 4.85 V In other than the above range, C13 (P0105) is indicated. H Sensor voltage is higher than specified IAP sensor circuit shorted to value. VCC or ground circuit open P0105 Sensor voltage is lower than specified IAP sensor circuit open or E L value. shorted to ground or VCC circuit Lopen TP sensor The sensor should produce following TP sensor, lead wire/coupler voltage. P connection C14 0.2 V sensor voltage < 4.80 V M In other than the above range, C14 (P0120) is indicated. A H Sensor voltage is higher than specified TP sensor circuit shorted to value. VCC or ground circuit open S P0120 Sensor voltage is lower than specified TP sensor circuit open or L value. shorted to ground or VCC circuit open ECT sensor The sensor voltage should be the fol- ECT sensor, lead wire/coupler lowing. connection C15 0.15 V sensor voltage < 4.85 V In other than the above range, C15 (P0115) is indicated. H Sensor voltage is higher than specified ECT sensor circuit open or P0115 value. ground circuit open L Sensor voltage is lower than specified ECT sensor circuit shorted to value. ground
