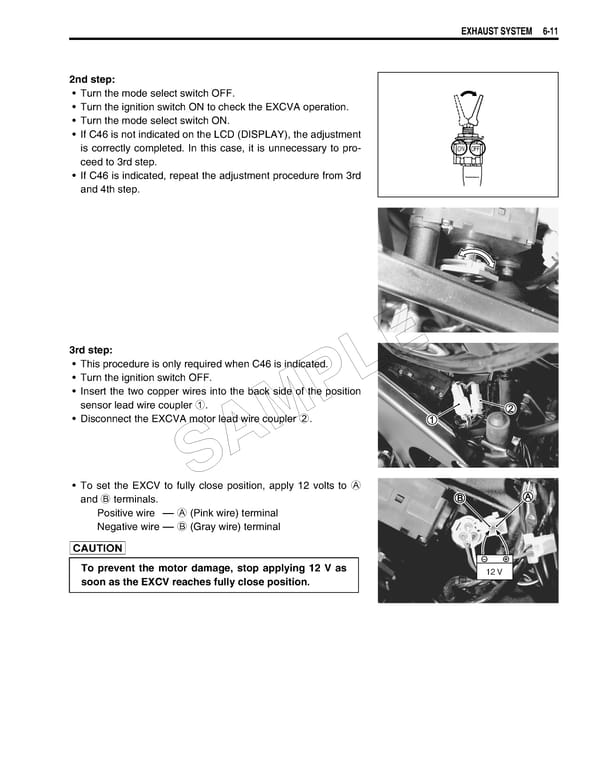

EXHAUST SYSTEM 6-11 2nd step: • Turn the mode select switch OFF. • Turn the ignition switch ON to check the EXCVA operation. • Turn the mode select switch ON. • If C46 is not indicated on the LCD (DISPLAY), the adjustment is correctly completed. In this case, it is unnecessary to pro- ON OFF ceed to 3rd step. • If C46 is indicated, repeat the adjustment procedure from 3rd and 4th step. 3rd step: E • This procedure is only required when C46 is indicated. • Turn the ignition switch OFF. L • Insert the two copper wires into the back side of the position sensor lead wire coupler 1. P • Disconnect the EXCVA motor lead wire coupler 2. SAM • To set the EXCV to fully close position, apply 12 volts to A and B terminals. Positive wire –– A (Pink wire) terminal Negative wire –– B (Gray wire) terminal  To prevent the motor damage, stop applying 12 V as 12 V soon as the EXCV reaches fully close position.
