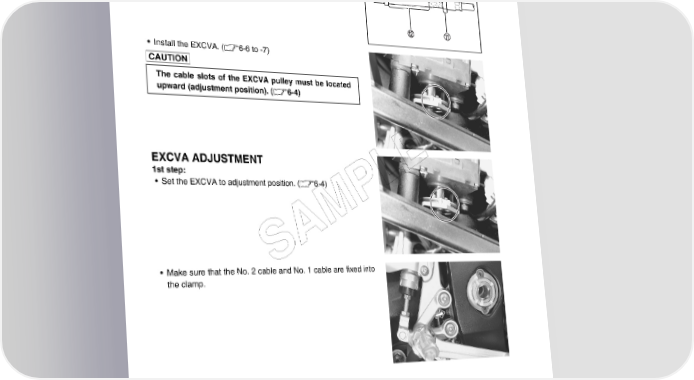

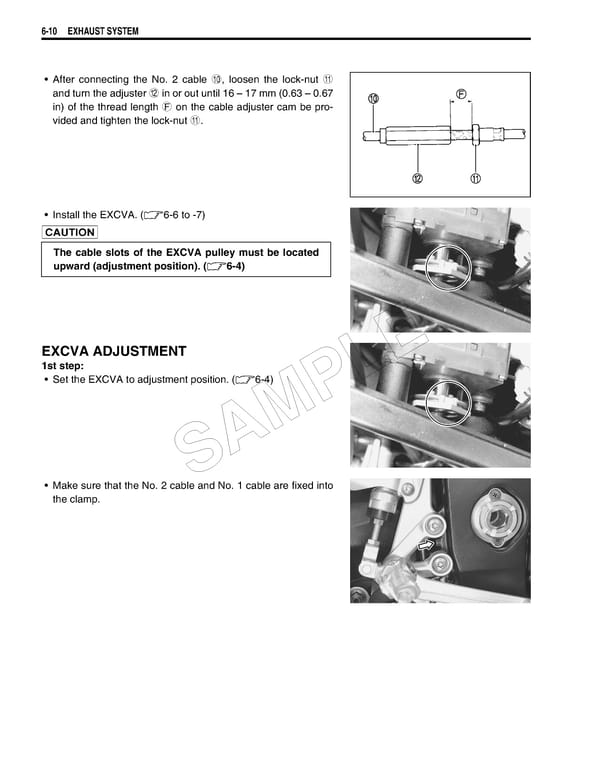

6-10 EXHAUST SYSTEM • After connecting the No. 2 cable 0, loosen the lock-nut A and turn the adjuster B in or out until 16 – 17 mm (0.63 – 0.67 in) of the thread length F on the cable adjuster cam be pro- vided and tighten the lock-nut A. • Install the EXCVA. (6-6 to -7)  The cable slots of the EXCVA pulley must be located upward (adjustment position). (6-4) EXCVA ADJUSTMENT E 1st step: L • Set the EXCVA to adjustment position. (6-4) P M A S • Make sure that the No. 2 cable and No. 1 cable are fixed into the clamp.
