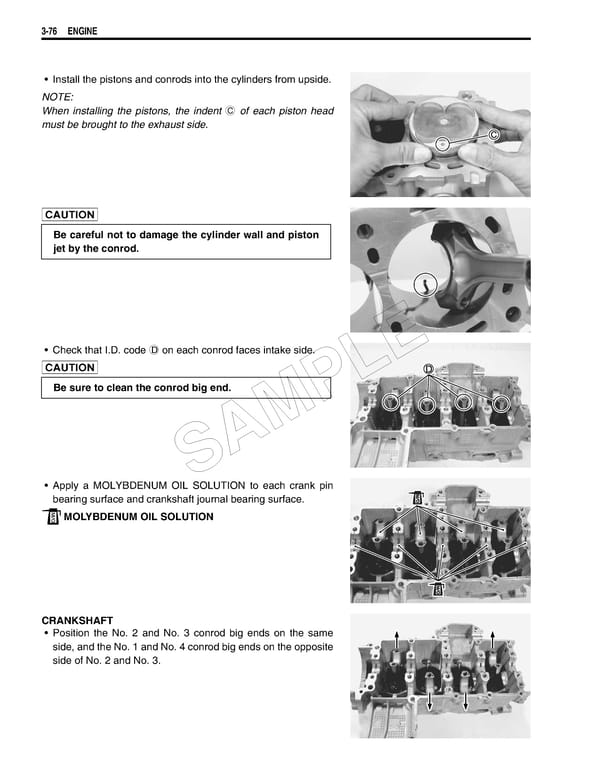

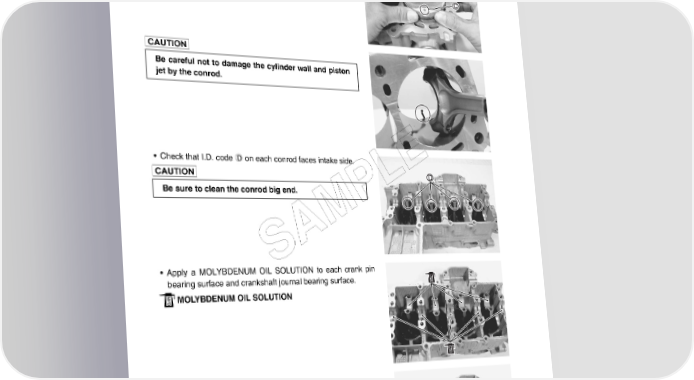

3-76 ENGINE • Install the pistons and conrods into the cylinders from upside. NOTE: When installing the pistons, the indent C of each piston head must be brought to the exhaust side. Be careful not to damage the cylinder wall and piston jet by the conrod. • Check that I.D. code D on each conrod faces intake side. E L Be sure to clean the conrod big end. P M A S • Apply a MOLYBDENUM OIL SOLUTION to each crank pin bearing surface and crankshaft journal bearing surface. MOLYBDENUM OIL SOLUTION CRANKSHAFT • Position the No. 2 and No. 3 conrod big ends on the same side, and the No. 1 and No. 4 conrod big ends on the opposite side of No. 2 and No. 3.
