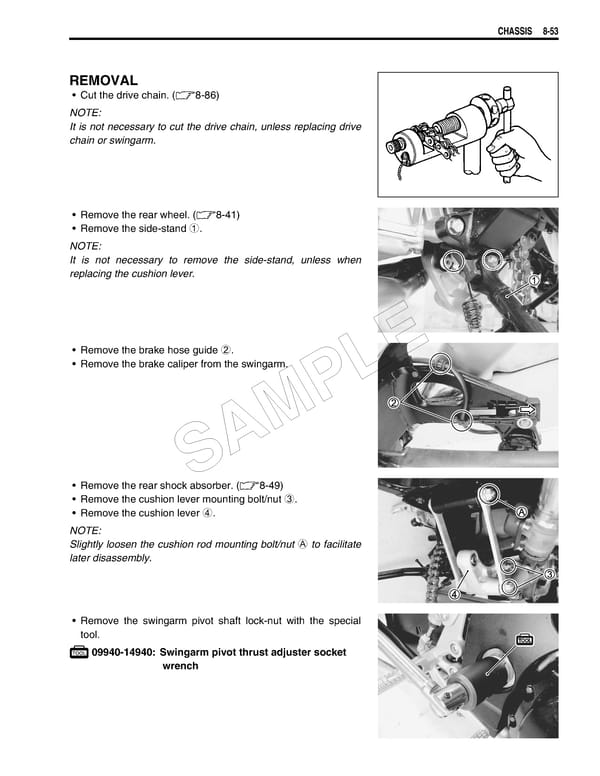

CHASSIS 8-53 REMOVAL • Cut the drive chain. (8-86) NOTE: It is not necessary to cut the drive chain, unless replacing drive chain or swingarm. • Remove the rear wheel. (8-41) • Remove the side-stand 1. NOTE: It is not necessary to remove the side-stand, unless when replacing the cushion lever. • Remove the brake hose guide 2. E • Remove the brake caliper from the swingarm. L P M A S • Remove the rear shock absorber. (8-49) • Remove the cushion lever mounting bolt/nut 3. • Remove the cushion lever 4. NOTE: Slightly loosen the cushion rod mounting bolt/nut A to facilitate later disassembly. • Remove the swingarm pivot shaft lock-nut with the special tool. 09940-14940: Swingarm pivot thrust adjuster socket wrench
