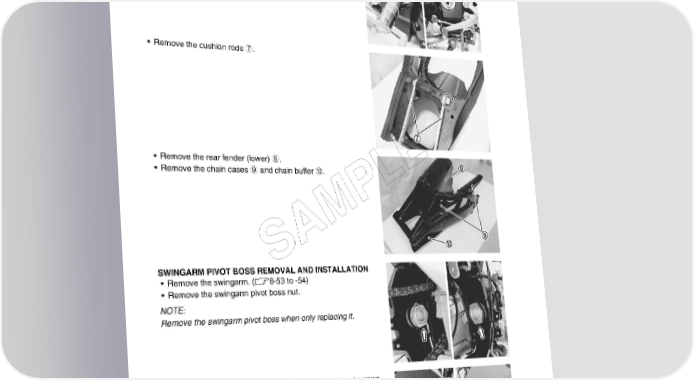

8-54 CHASSIS • Hold the swingarm pivot shaft 5 and remove the swingarm pivot nut 6. 09944-28320: Hexagon socket (19 mm) • Draw out the swingarm pivot shaft. • Remove the rear suspension assembly. • Remove the cushion rods 7. • Remove the rear fender (lower) 8. E • Remove the chain cases 9 and chain buffer 0. L P M A S SWINGARM PIVOT BOSS REMOVAL AND INSTALLATION • Remove the swingarm. (8-53 to -54) • Remove the swingarm pivot boss nut. NOTE: Remove the swingarm pivot boss when only replacing it. • Remove the swingarm pivot boss by removing its set screws.
