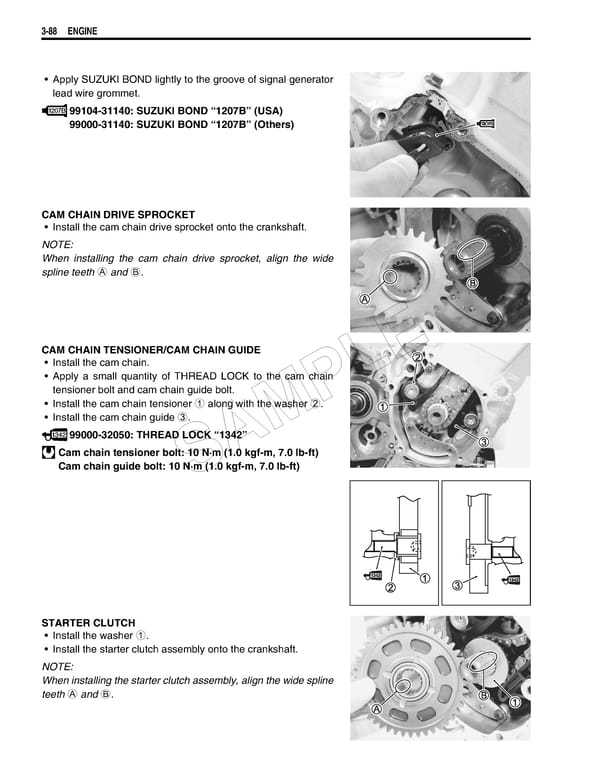

3-88 ENGINE • Apply SUZUKI BOND lightly to the groove of signal generator lead wire grommet. 99104-31140: SUZUKI BOND “1207B” (USA) 99000-31140: SUZUKI BOND “1207B” (Others) CAM CHAIN DRIVE SPROCKET • Install the cam chain drive sprocket onto the crankshaft. NOTE: When installing the cam chain drive sprocket, align the wide spline teeth A and B. CAM CHAIN TENSIONER/CAM CHAIN GUIDE E • Install the cam chain. • Apply a small quantity of THREAD LOCK to the cam chain L tensioner bolt and cam chain guide bolt. P • Install the cam chain tensioner 1 along with the washer 2. • Install the cam chain guide 3. M 99000-32050: THREAD LOCK “1342” A Cam chain tensioner bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft) Cam chain guide bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft) S STARTER CLUTCH • Install the washer 1. • Install the starter clutch assembly onto the crankshaft. NOTE: When installing the starter clutch assembly, align the wide spline teeth A and B.
