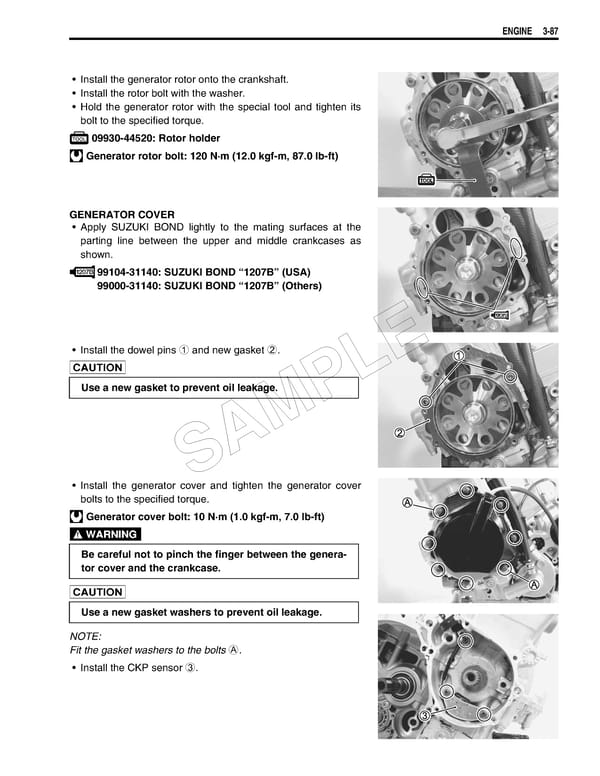

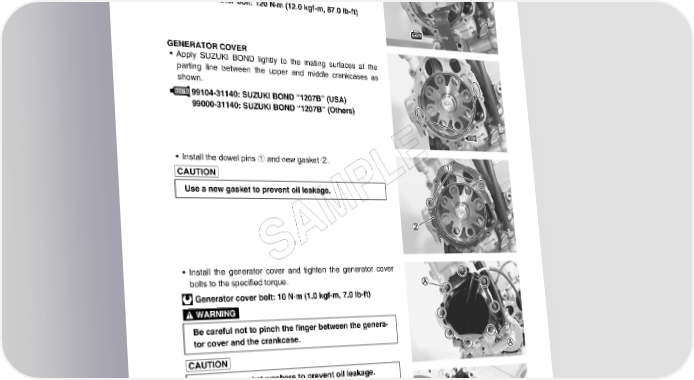

ENGINE 3-87 • Install the generator rotor onto the crankshaft. • Install the rotor bolt with the washer. • Hold the generator rotor with the special tool and tighten its bolt to the specified torque. 09930-44520: Rotor holder Generator rotor bolt: 120 N·m (12.0 kgf-m, 87.0 lb-ft) GENERATOR COVER • Apply SUZUKI BOND lightly to the mating surfaces at the parting line between the upper and middle crankcases as shown. 99104-31140: SUZUKI BOND “1207B” (USA) 99000-31140: SUZUKI BOND “1207B” (Others) • Install the dowel pins 1 and new gasket 2. E  L Use a new gasket to prevent oil leakage. P M A S • Install the generator cover and tighten the generator cover bolts to the specified torque. Generator cover bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)  Be careful not to pinch the finger between the genera- tor cover and the crankcase.  Use a new gasket washers to prevent oil leakage. NOTE: Fit the gasket washers to the bolts A. • Install the CKP sensor 3.
