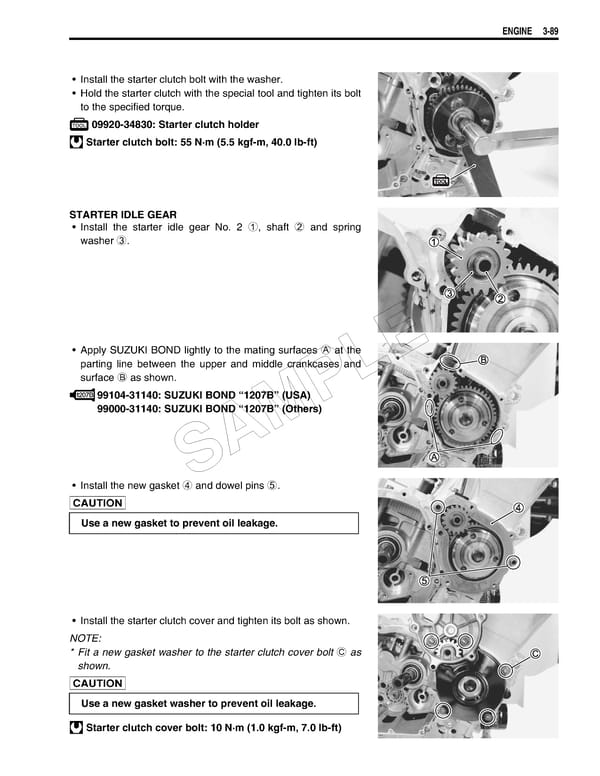

ENGINE 3-89 • Install the starter clutch bolt with the washer. • Hold the starter clutch with the special tool and tighten its bolt to the specified torque. 09920-34830: Starter clutch holder Starter clutch bolt: 55 N·m (5.5 kgf-m, 40.0 lb-ft) STARTER IDLE GEAR • Install the starter idle gear No. 2 1, shaft 2 and spring washer 3. • Apply SUZUKI BOND lightly to the mating surfaces A at the E parting line between the upper and middle crankcases and surface B as shown. L 99104-31140: SUZUKI BOND “1207B” (USA) P 99000-31140: SUZUKI BOND “1207B” (Others) M A S • Install the new gasket 4 and dowel pins 5.  Use a new gasket to prevent oil leakage. • Install the starter clutch cover and tighten its bolt as shown. NOTE: * Fit a new gasket washer to the starter clutch cover bolt C as shown.  Use a new gasket washer to prevent oil leakage. Starter clutch cover bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
