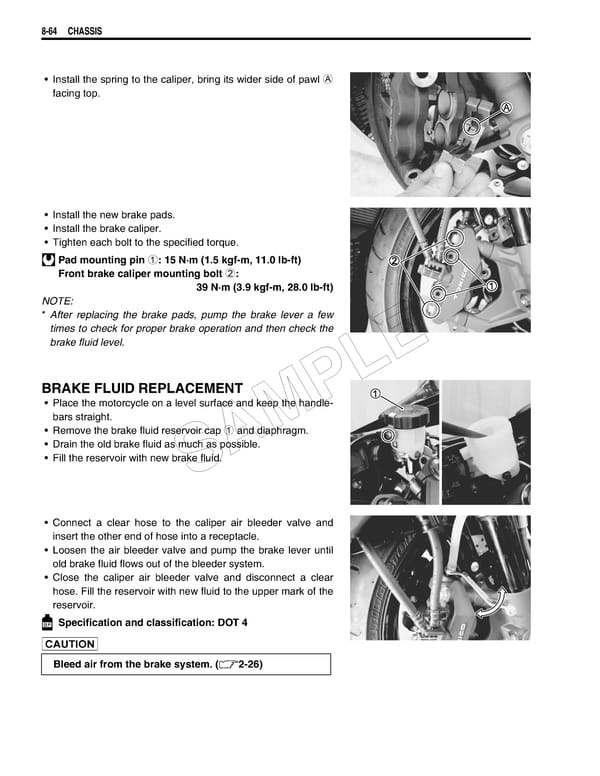

8-64 CHASSIS • Install the spring to the caliper, bring its wider side of pawl A facing top. • Install the new brake pads. • Install the brake caliper. • Tighten each bolt to the specified torque. Pad mounting pin 1: 15 N·m (1.5 kgf-m, 11.0 lb-ft) Front brake caliper mounting bolt 2: 39 N·m (3.9 kgf-m, 28.0 lb-ft) NOTE: * After replacing the brake pads, pump the brake lever a few times to check for proper brake operation and then check the brake fluid level. E BRAKE FLUID REPLACEMENT L P • Place the motorcycle on a level surface and keep the handle- bars straight. M • Remove the brake fluid reservoir cap 1 and diaphragm. • Drain the old brake fluid as much as possible. • Fill the reservoir with new brake fluid. A S • Connect a clear hose to the caliper air bleeder valve and insert the other end of hose into a receptacle. • Loosen the air bleeder valve and pump the brake lever until old brake fluid flows out of the bleeder system. • Close the caliper air bleeder valve and disconnect a clear hose. Fill the reservoir with new fluid to the upper mark of the reservoir. Specification and classification: DOT 4  Bleed air from the brake system. (2-26)
